SOM-SMARC-Dragonwing-IQ8 (F86)
Depending on the configuration and following revisions, the board's features are subject to change. For detailed information on hardware specifications, please visit www.seco.com.

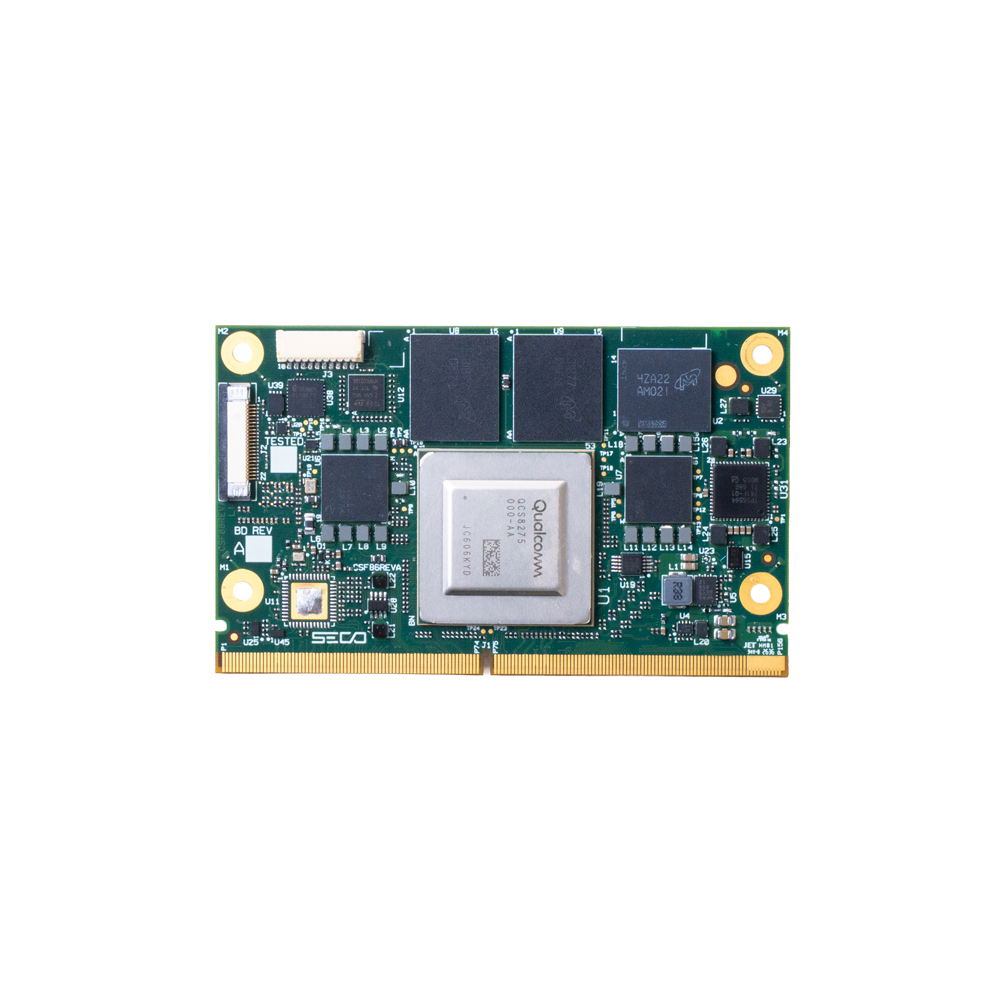

The SOM-SMARC-Dragonwing-IQ8 is a high-performance SMARC® 2.2 Computer on Module powered by Qualcomm Dragonwing™ IQ8 QCS8275 processors, designed for advanced Edge AI and intelligent embedded applications.
Featuring a Qualcomm® Hexagon™ NPU delivering up to 40 TOPS of AI acceleration and an Adreno™ 623 GPU, the module enables on-device inference, machine vision, and advanced multimedia processing. It supports up to 32GB of LPDDR5/LPDDR5X memory, up to 1TB of onboard UFS storage, and two independent displays with resolutions up to 4K at 120Hz.
Extensive connectivity options include Gigabit and 2.5 Gigabit Ethernet, PCIe Gen4, USB, and multiple MIPI-CSI camera interfaces. Its compact 82 x 50 mm form factor, industrial temperature support, integrated TPM 2.0 security, and compatibility with Clea OS and Yocto Linux make it suitable for industrial automation, autonomous robotics, intelligent HMIs, and Physical AI systems.
For ordering purposes, the SOM-SMARC-MX8M is referred to by its base code, "F86".
Technical Documents
At the following Links you will find documentations like Manual and Rev. specific documents.
Manual
Datasheet
Product page
Connect to Clea Cloud
Step by step guide to register a Clea OS device and configure endpoints and credentials to enable cloud connectivity and device management.
What is loaded in a standard module?
Off-the-shelf products are shipped with a standard in-house-developed software. The definition of standard, in this case, is “the environment which SECO adopts for validation”. Anyway, custom in-house-developed software with different defaults can be built. Contact your reference sales for further information.
Clea OS
All off-the-shelf products are shipped with Clea OS preinstalled as the standard software environment. Clea OS is a versatile and robust Linux Operating System framework designed specifically for industrial embedded devices. Based on the open source Yocto Project, Clea OS offers a flexible and customizable platform that can be tailored to meet the specific needs of various hardware architectures and applications.
Starting with Linux Kernel 6.6, the Board Support Package (BSP) for this board is fully integrated into Clea OS. It ensures high security and stability through features like OTA (Over-the-Air) updates, dual partitions, and fallback procedures. Additionally, Clea OS includes a complete device manager for seamless cloud communication, enabling centralized management of product fleets.
Documentation
For a complete explanation of Clea OS and detailed installation instructions, refer to the official documentation:
Download Clea OS Images
To quickly get started, download the latest complete prebuild Clea OS images (or other binaries like U-Boot, Linux Kernel, SDKs) from the official release page:
Build Clea OS
The source code for Clea OS can be found at the following Gitlab organization. To build a complete BSP image from source you can check the Get Started pages of the documentation.
