Carrier-Myon-ConXM

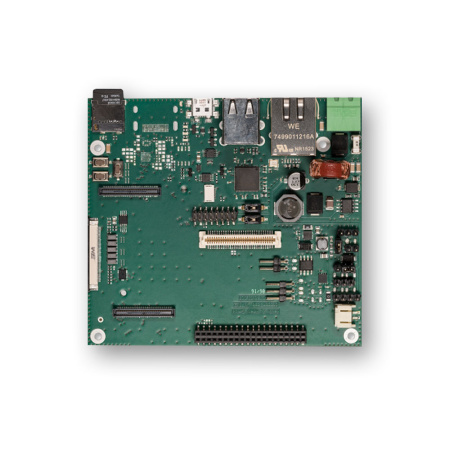

SECO Carrier-Myon-ConXM is a MicroModule carrier board designed for the SOM-Myon-I-410E, created to support evaluation, bring-up and system integration in compact embedded scenarios. The platform exposes a microSD card socket for storage and supports operating systems including Microsoft Windows 10 IoT Core, Linux, and Android.
On the connectivity stack, it provides 10/100 Mbit Ethernet on RJ45, USB 2.0 Host and USB 2.0 OTG, plus a Mini PCIe Half/Full Size connector combined with a nano SIM card slot. Wireless connectivity is available via the Myon I SOM, with WLAN 802.11 b/g/n 2.4GHz and Bluetooth support.
For expansion and system interfaces, the board includes a 40-pin low speed expansion connector, compatible with DragonBoard 410c, exposing SPI, I2S, 2x I2C, 12x GPIO, and DC power, plus a 60-pin high speed expansion connector with 4-lane MIPI-DSI, USB, 2x I2C, and 2-lane plus 4-lane MIPI-CSI. It also provides UART through the low speed expansion connector, optional analog audio expansion support, industrial 12V to 24V power input, and an operating temperature range from -20°C to +85°C, within a compact 100.0 x 90.0 x 18.0 mm form factor.
Technical Documents
At the following Links you will find documentations like Manual and Rev. specific documents.
