Carrier-Trizeps-iP5-Base

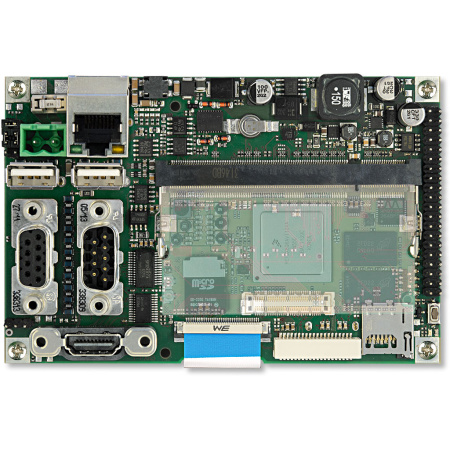

SECO Carrier-Trizeps-iP5-Base is a very compact and multifunctional carrier board for Trizeps SODIMM SOMs, designed to support evaluation, bring-up and system integration across compatible platforms including SOM-Trizeps-VII-MX6, SOM-Trizeps-VIII-MX8MI and Trizeps-VIII-MX8M-Mini, with broader compatibility also listed for Trizeps VIII Nano and Trizeps VIII Plus families.
On the display stack, it supports HDMI, RGB, LVDS and Dual LVDS, plus touchscreen LCD integration, enabling connection to a wide range of displays for HMI and embedded applications.
For connectivity and system interfaces, the board includes 10/100 Mbit Ethernet, USB 2.0 Host and USB 2.0 OTG, RS232 and RS485 via D-SUB, 2x UART on header, SATA II, CAN transceiver, resistive touch interface, RTC, accelerometer, temperature sensor, power fail detection, and a 40-pin extension connector exposing GPIO, SPDIF, 2x CAN, SDIO, I2C and ADC signals. It supports Linux Yocto, Linux Debian, Android and Windows 10 IoT, with industrial 12V to 24V power input and an operating temperature range from -20°C to +85°C.
Technical Documents
At the following Links you will find documentations like Manual and Rev. specific documents.
