Carrier-Trizeps-pConXS-III

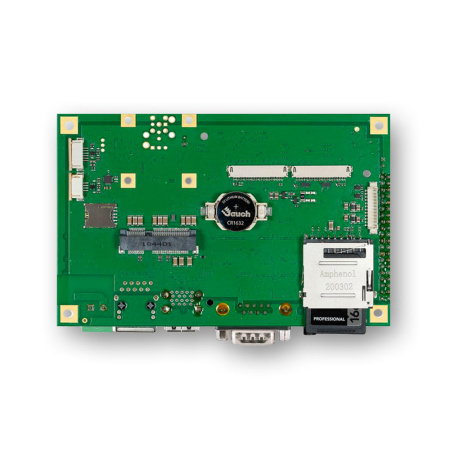

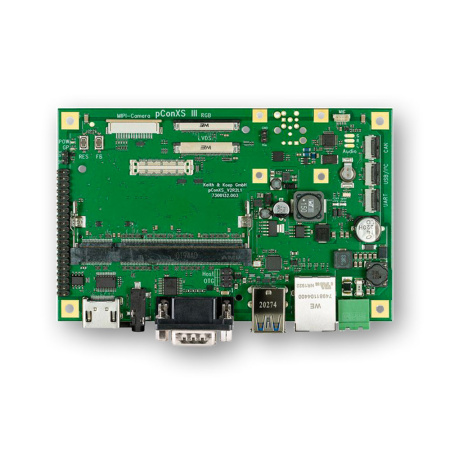

SECO Carrier-Trizeps-pConXS-III is a multifunctional and compact SODIMM 200 carrier board designed for SOM-Trizeps modules, supporting the full feature set of SOM-Trizeps-VII-MX6 and SOM-Trizeps-VIII-MX8M, MX8M-Mini, MX8M-Plus, and Trizeps VIII Nano platforms.
On the display and vision stack, it supports LVDS, Dual-LVDS, 18-bit parallel RGB display output, HDMI on selected compatible SOMs, capacitive and resistive touch, plus a MIPI camera connector and an optional analog BNC or Mini BNC parallel camera interface.
For connectivity and expansion, the board includes Gigabit Ethernet on RJ45, 1x USB 3.0 OTG, 1x USB 2.0 Host on Type-A, 3x USB 2.0 Host on internal connectors, a Mini PCIe Half or Full Size slot with nano SIM support, SD card socket, RS232, UART via i-MOD FFC and header, audio interfaces, CAN, GPIO, I2C, SDIO, SPDIF, ADC, and power fail detection.
For system integration, it supports Linux Yocto, Debian, Android, and Windows 10 IoT depending on the installed SOM, operates from -20°C to +85°C, accepts industrial 12V to 24V power input, and comes in a compact 133.0 x 93.5 x 25.0 mm format.
Technical Documents
At the following Links you will find documentations like Manual and Rev. specific documents.
