Krater RV1000 (SYS-C90-DS)
Depending on the configuration and following revisions, the features of the board are subject to change. For detailed information on hardware specifications, please visit www.seco.com
SECO Krater RV1000 (KRATER, SYS-C90-DS) is a fanless embedded computer designed for Digital Signage and multi-display deployments, based on AMD Ryzen™ Embedded R1000 and V1000 SoCs, including options such as V1605B, V1202B, R1606G, and R1505G, with AMD Radeon™ Vega graphics and support for up to 4 independent displays (3 with R1000 SoCs).

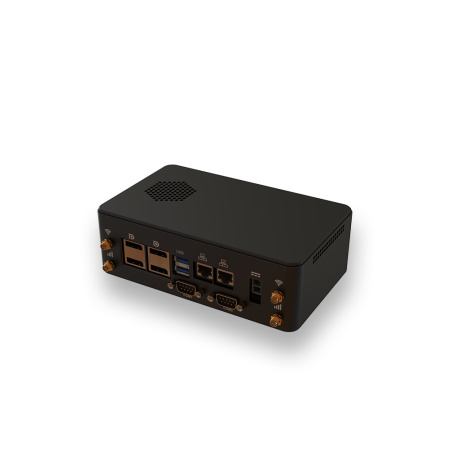

On the I/O stack, it supports 4x DP++ video outputs (3 active with R1000 SoCs), up to 4096 × 2160 resolution, dual Gigabit Ethernet, 2x USB 3.0 Type-A, and 2x serial ports configurable on DB-9 (RS-232, RS-422, RS-485). For storage and connectivity, it offers optional M.2 NVMe modules and optional SATA SSDs (up to 2TB), plus internal M.2 slots for WWAN (Key B) and WiFi/BT (Key E), with an externally accessible miniSIM slot for the optional modem.
Memory is based on up to 2x DDR4 SO-DIMMs, with configurations up to 32GB dual channel. The system is available with optional preinstalled OS (Windows 10 IoT Enterprise 64-bit or Linux), operates from 0°C to +50°C, and comes in a compact enclosure (179.4 × 109 × 57.8 mm) powered via a 2-pole Mega-Fit connector in the +12VDC to +24VDC range.
For ordering purposes, Krater RV1000 is referred to by its base code, "SYS-C90-DS".
Technical Documents
At the following Links you will find documentations like Manual and Rev. specific documents.
Manual
Datasheet
Product page
Connect to Clea Cloud
Step by step guide to register a Clea OS device and configure endpoints and credentials to enable cloud connectivity and device management.
What is loaded in a standard module?
Off-the-shelf products are shipped with a standard in-house-developed software. The definition of standard, in this case, is “the environment which SECO adopts for validation”. Anyway, custom in-house-developed software with different defaults can be built. Contact your reference sales for further information.
Clea OS
All off-the-shelf products are shipped with Clea OS preinstalled as the standard software environment. Clea OS is a versatile and robust Linux Operating System framework designed specifically for industrial embedded devices. Based on the open source Yocto Project, Clea OS offers a flexible and customizable platform that can be tailored to meet the specific needs of various hardware architectures and applications.
Starting with Linux Kernel 6.6, the Board Support Package (BSP) for this board is fully integrated into Clea OS. It ensures high security and stability through features like OTA (Over-the-Air) updates, dual partitions, and fallback procedures. Additionally, Clea OS includes a complete device manager for seamless cloud communication, enabling centralized management of product fleets.
Documentation
For a complete explanation of Clea OS and detailed installation instructions, refer to the official documentation:
Download Clea OS Images
To quickly get started, download the latest complete prebuild Clea OS images (or other binaries like U-Boot, Linux Kernel, SDKs) from the official release page:
Build Clea OS
The source code for Clea OS can be found at the following Gitlab organization. To build a complete BSP image from source you can check the Get Started pages of the documentation.
