Modular Link IQ-615 (SF-E39-GRE)
Depending on the configuration and following revisions, the features of the board are subject to change. For detailed information on hardware specifications, please visit www.seco.com

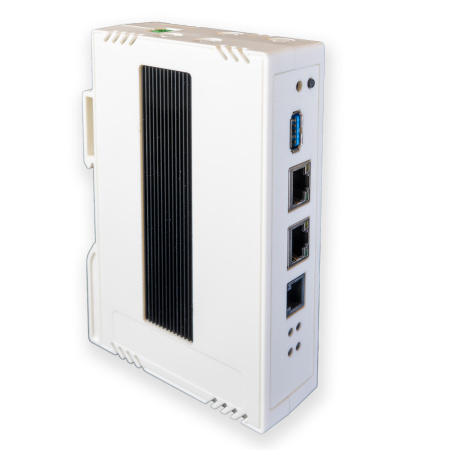

SECO Modular Link IQ-615 is a compact DIN mount industrial gateway based on the Qualcomm® IQ-615 SoC (64-bit SMT, octa-core Kryo 4), designed for industrial edge deployments that need local compute plus secure connectivity.
On the platform stack it includes 4GB LPDDR4X RAM, 32GB eMMC, Qualcomm® Adreno™ 612 graphics, optional MiniHDMI® output up to 1080p at 60Hz, and runs SECO Clea OS (Linux Yocto).
For field integration it provides 2x 10/100 Ethernet, 1x USB 3.1 Type-A (front), 1x USB Micro-AB for debug, and 1x RS485 on RJ11, plus TPM 2.0, RTC, JTAG, LEDs and user buttons, with 24Vdc power supply (less than 20W), -40°C to +80°C operating range, and 140 x 96 x 36 mm dimensions.
For ordering purposes, Modular Link IQ-615 is referred to by its base code, "SF-E39-GRE".
Technical Documents
At the following Links you will find documentations like Manual and Rev. specific documents.
Manual
Datasheet
Product page
Connect to Clea Cloud
Step by step guide to register a Clea OS device and configure endpoints and credentials to enable cloud connectivity and device management.
What is loaded in a standard module?
Off-the-shelf products are shipped with a standard in-house-developed software. The definition of standard, in this case, is “the environment which SECO adopts for validation”. Anyway, custom in-house-developed software with different defaults can be built. Contact your reference sales for further information.
Clea OS
All off-the-shelf products are shipped with Clea OS preinstalled as the standard software environment. Clea OS is a versatile and robust Linux Operating System framework designed specifically for industrial embedded devices. Based on the open source Yocto Project, Clea OS offers a flexible and customizable platform that can be tailored to meet the specific needs of various hardware architectures and applications.
Starting with Linux Kernel 6.6, the Board Support Package (BSP) for this board is fully integrated into Clea OS. It ensures high security and stability through features like OTA (Over-the-Air) updates, dual partitions, and fallback procedures. Additionally, Clea OS includes a complete device manager for seamless cloud communication, enabling centralized management of product fleets.
Documentation
For a complete explanation of Clea OS and detailed installation instructions, refer to the official documentation:
Download Clea OS Images
To quickly get started, download the latest complete prebuild Clea OS images (or other binaries like U-Boot, Linux Kernel, SDKs) from the official release page:
Build Clea OS
The source code for Clea OS can be found at the following Gitlab organization. To build a complete BSP image from source you can check the Get Started pages of the documentation.
