Titan 250 APL IP65 (SYS-B68-HEN)
Depending on the configuration and following revisions, the features of thecboard are subject to change. For detailed information on hardwarecspecifications, please visitc www.seco.com

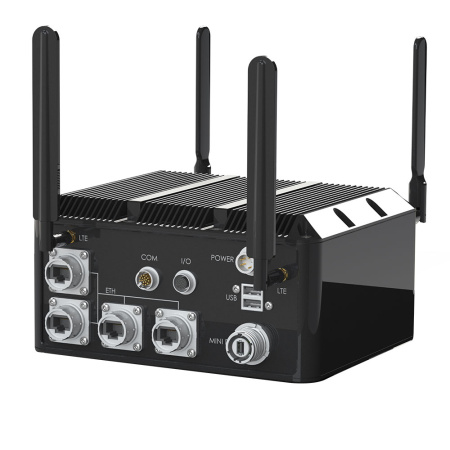

SECO Titan 250 APL IP65 is an IP65 rated fanless embedded PC (CHAMALEON, SYS-B68-HEN) built on Intel® Atom® x5 Apollo Lake, positioned for industrial deployments that need sealed enclosure protection and a compact edge compute footprint.
The highlighted configuration on the product page includes an Intel® Atom® x5-E3930 dual core CPU (1.3 GHz, burst 1.8 GHz, 6.5W TDP), integrated Intel® HD Graphics 500 series, and 2GB on-board LPDDR4 memory, with a display stack based on a miniDP++ connector supporting up to 4096 × 2160 resolution.
On storage and connectivity, it lists 64GB on-board eMMC, with optional internal SATA M.2 SSD up to 512GB (as an alternative to certain options), plus up to 2x Gigabit Ethernet RJ45 connectors with an optional additional 2x GbE as a configuration alternative. Expansion options include M.2 Key B for cellular modem modules (with on-board microSIM) and M.2 Key E for Wi-Fi and Bluetooth with external antennas, plus USB and serial I/O (2x USB 2.0 Type-A, 2x RS-232/RS-485 software configurable), GPIOs, and TPM 2.0.
Power input is specified with a recommended +18VDC to +32VDC range (absolute +15VDC to +36VDC). The OS section lists factory options including Microsoft Windows 10 IoT Enterprise and Linux 64-bit, and the physical dimensions are 218 × 218.5 × 115.6 mm.
For ordering purposes, Titan 250 APL IP65 is referred to by its base code, "SYS-B68-HEN".
Technical Documents
At the following Links you will find documentations like Manual and Rev. specific documents.
Manual
Datasheet
Product page
Connect to Clea Cloud
Step by step guide to register a Clea OS device and configure endpoints and credentials to enable cloud connectivity and device management.
What is loaded in a standard module?
Off-the-shelf products are shipped with a standard in-house-developed software. The definition of standard, in this case, is “the environment which SECO adopts for validation”. Anyway, custom in-house-developed software with different defaults can be built. Contact your reference sales for further information.
Clea OS
All off-the-shelf products are shipped with Clea OS preinstalled as the standard software environment. Clea OS is a versatile and robust Linux Operating System framework designed specifically for industrial embedded devices. Based on the open source Yocto Project, Clea OS offers a flexible and customizable platform that can be tailored to meet the specific needs of various hardware architectures and applications.
Starting with Linux Kernel 6.6, the Board Support Package (BSP) for this board is fully integrated into Clea OS. It ensures high security and stability through features like OTA (Over-the-Air) updates, dual partitions, and fallback procedures. Additionally, Clea OS includes a complete device manager for seamless cloud communication, enabling centralized management of product fleets.
Documentation
For a complete explanation of Clea OS and detailed installation instructions, refer to the official documentation:
Download Clea OS Images
To quickly get started, download the latest complete prebuild Clea OS images (or other binaries like U-Boot, Linux Kernel, SDKs) from the official release page:
Build Clea OS
The source code for Clea OS can be found at the following Gitlab organization. To build a complete BSP image from source you can check the Get Started pages of the documentation.
