Pi Vision

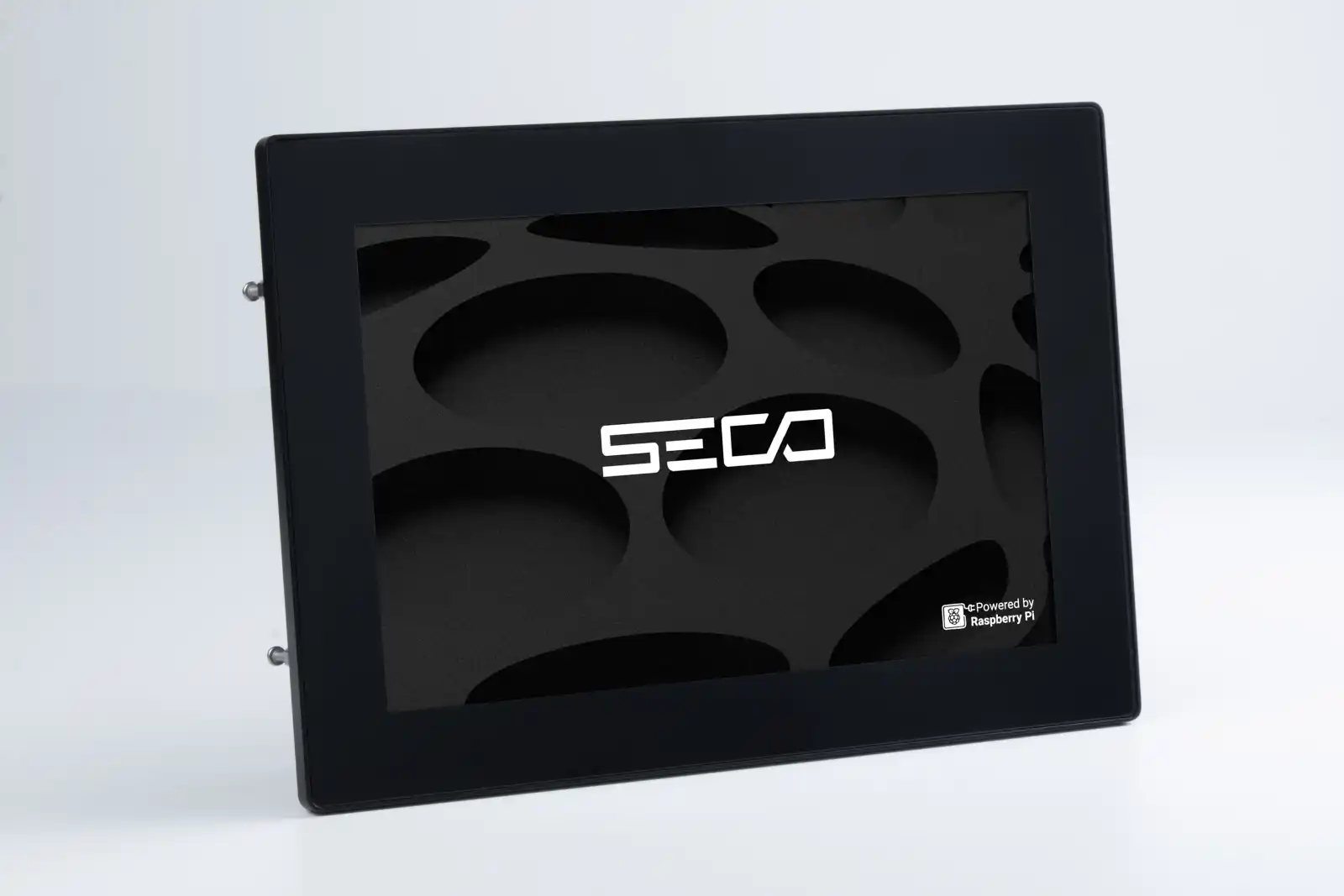

The SECO Pi Vision 10.1 CM5 is a versatile and modular 10.1-inch HMI designed for the evolving demands of industrial applications. It is based on the Raspberry Pi Compute Module 5 (CM5) and integrates the Clea IoT software suite. It combines SECO's expertise in hardware engineering and IoT software with the advanced computing technology of the Raspberry Pi, delivering outstanding performance and flexibility.

Get start with Pi Vision

This guide is designed to walk you through everything you need to know to get started: from understanding your new device, to installing and configuring it for your specific industrial or AI-based project.

Technical Documents

At the following Links you will find documentation like Manual and Rev. specific documents.

User Manual

Datasheet

Clea OS

Clea OS is a versatile and robust Linux Operating System framework designed specifically for industrial embedded devices. Based on the open source Yocto Project, Clea OS offers a flexible and customizable platform that can be tailored to meet the specific needs of various hardware architectures and applications.

The Board Support Package (BSP) for this board is fully integrated into Clea OS. It ensures high security and stability through features like OTA (Over-the-Air) updates, dual partitions, and fallback procedures. Additionally, Clea OS includes a complete device manager for seamless cloud communication, enabling centralized management of product fleets.

Documentation

For a complete explanation of Clea OS and detailed installation instructions, refer to the official documentation:

Clea OS Documentation

Download Clea OS Images

To quickly get started, download the latest complete prebuild Clea OS images (or other binaries like U-Boot, Linux Kernel, SDKs) from the official release page:

Download Clea OS images here

Installation instructions for Pi Vision 10.1 CM5

Build Clea OS

The source code for Clea OS can be found at the following Gitlab organization. To build a complete BSP image from source you can check the Get Started pages of the documentation.

Downloads

Release	Version / Link
Clea OS 2-02-00	Clea OS scarthgap_2-02-00
Raspberry Pi OS (SECO branded) user: pi - pwd: pi	Raspberry Pi OS bookworm_4-0

Configuration

Raspberry Pi Compute Module 5

Processor: Broadcom BCM2712 quad-core 64-bit Arm Cortex-A76 (Armv8) SoC @ 2.4GHz

• Up to 8GB LPDDR4-4267 SDRAM with ECC
• Up to 64GB eMMC flash memory

Display

10.1” display
Resolution 1280 x 800
LED lifetime 50K hours
400cd/m² brightness

Supported OS

Clea OS (Linux Yocto)
Raspberry Pi OS

Drawings

At the following Links you will find documentation like Manual and Rev. specific documents.

2D-File as PDF file: Pi-Vision 10.1".PDF

3D-File as Step-file: Pi-Vision 10.1" .step
