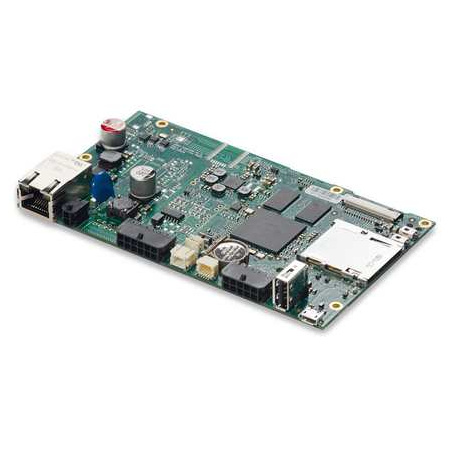

SBC-SANTINO-MX6
SECO SBC-SANTINO-MX6 is an optimized Single Board Computer (SBC) for projects in the 5.7” to 10.4” range, based on NXP i.MX6 single or dual core lite processors, positioned as a ready-to-use embedded platform thanks to industrial interfaces plus USB and Ethernet, and a wide range voltage input with Linux Yocto listed as operating system.
On the HMI integration layer, it provides an 18-bit parallel RGB interface (up to 1024 x 600, 18 bpp) and exposes TTL plus I²C interfaces for touch display integration.
For the core platform stack, it includes 1 GB LPDDR4, 4 GB MLC eMMC plus a microSD slot, 1x 100Mb Ethernet, USB 2.0 OTG (micro-AB) plus USB 2.0 Type-A, speaker output, 2x serial ports (RS-232, RS-485), 9 to 32 VDC input, and 0°C to +60°C operating temperature, in 138.0 x 18.0 x 80.0 mm form factor.
Technical Documents
At the following Links you will find documentations like Manual and Rev. specific documents.
