SBC-pITX-BT (A44)
Depending on the configuration and following revisions, the features of the board are subject to change. For detailed information on hardware specifications, please visit www.seco.com

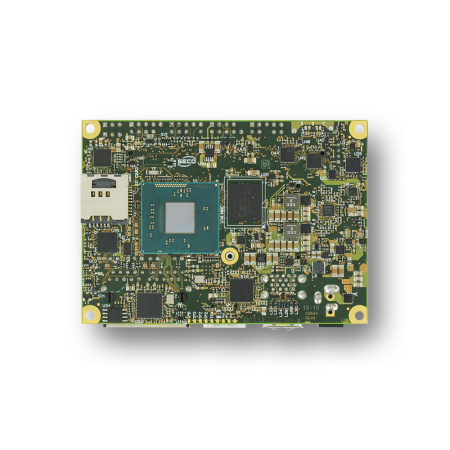

SECO SBC-pITX-BT is a Pico-ITX single board computer based on the Intel® Atom™ E3800 SoC family (Bay Trail), positioned for industrial and harsh-environment deployments with ECC memory support and an operating temperature option up to -40°C to +85°C.
On the platform stack, it supports up to 8GB DDR3L ECC via SO-DIMM, offers dual Gigabit Ethernet, and integrates flexible expansion through a half miniPCIe slot (shared with mSATA), alongside a practical bring-up I/O set including HDMI plus LVDS display connectivity, SATA plus optional onboard eMMC and microSD, and native serial connectivity options (RS-232, RS-422, RS-485) depending on configuration.
For ordering purposes, the SBC-pITX-BT is referred to by its base code, “A44”.
Technical Documents
At the following Links you will find documentations like Manual and Rev. specific documents.
Manual
Datasheet
Product page
Connect to Clea Cloud
Step by step guide to register a Clea OS device and configure endpoints and credentials to enable cloud connectivity and device management.
Software Resources
Pre-installed Software
Off-the-shelf products are shipped with a standard in-house-developed software. The definition of standard, in this case, is “the environment which SECO adopts for validation”. Anyway, custom in-house-developed software with different defaults can be built. Contact your reference sales for further information.
Clea OS
All off-the-shelf products are shipped with Clea OS preinstalled as the standard software environment.
Clea OS is a versatile and robust Linux Operating System framework designed specifically for industrial embedded devices. Based on the open source Yocto Project, Clea OS offers a flexible and customizable platform that can be tailored to meet the specific needs of various hardware architectures and applications.
The Board Support Package (BSP) for this board is fully integrated into Clea OS. It ensures high security and stability through features like OTA (Over-the-Air) updates, dual partitions, and fallback procedures. Additionally, Clea OS includes a complete device manager (Clea Edgehog) for seamless cloud communication, enabling centralized management of product fleets.
Documentation
For a complete explanation of Clea OS and detailed installation instructions, refer to the official documentation:
Download Clea OS Images
To quickly get started, download the latest complete prebuild Clea OS images (or other binaries like U-Boot, Linux Kernel, SDKs) from the official release page:
| Release | Version / Link |
|---|---|
| Clea OS 2-03-00 | Clea OS scarthgap_2-03-00 |
| Clea OS 2-02-00 | Clea OS scarthgap_2-02-00 |
| Clea OS 2-01-00 | Clea OS scarthgap_2-01-00 |
| Clea OS 1-10-00 | Clea OS kirkstone_1-10-00 |
| Clea OS 1-09-00 | Clea OS kirkstone_1-09-00 |
| Clea OS 1-08-00 | Clea OS kirkstone_1-08-00 |
Build Clea OS
The source code for Clea OS can be found at the following Gitlab organization. To build a complete BSP image from source you can check the Get Started pages of the documentation.
