Palladio 400 RPL
Welcome to the SECO Palladio 400 RPL! This guide is designed to walk you through everything you need to know to get started: from understanding your new device, to installing and configuring it for your specific industrial or AI-based project.

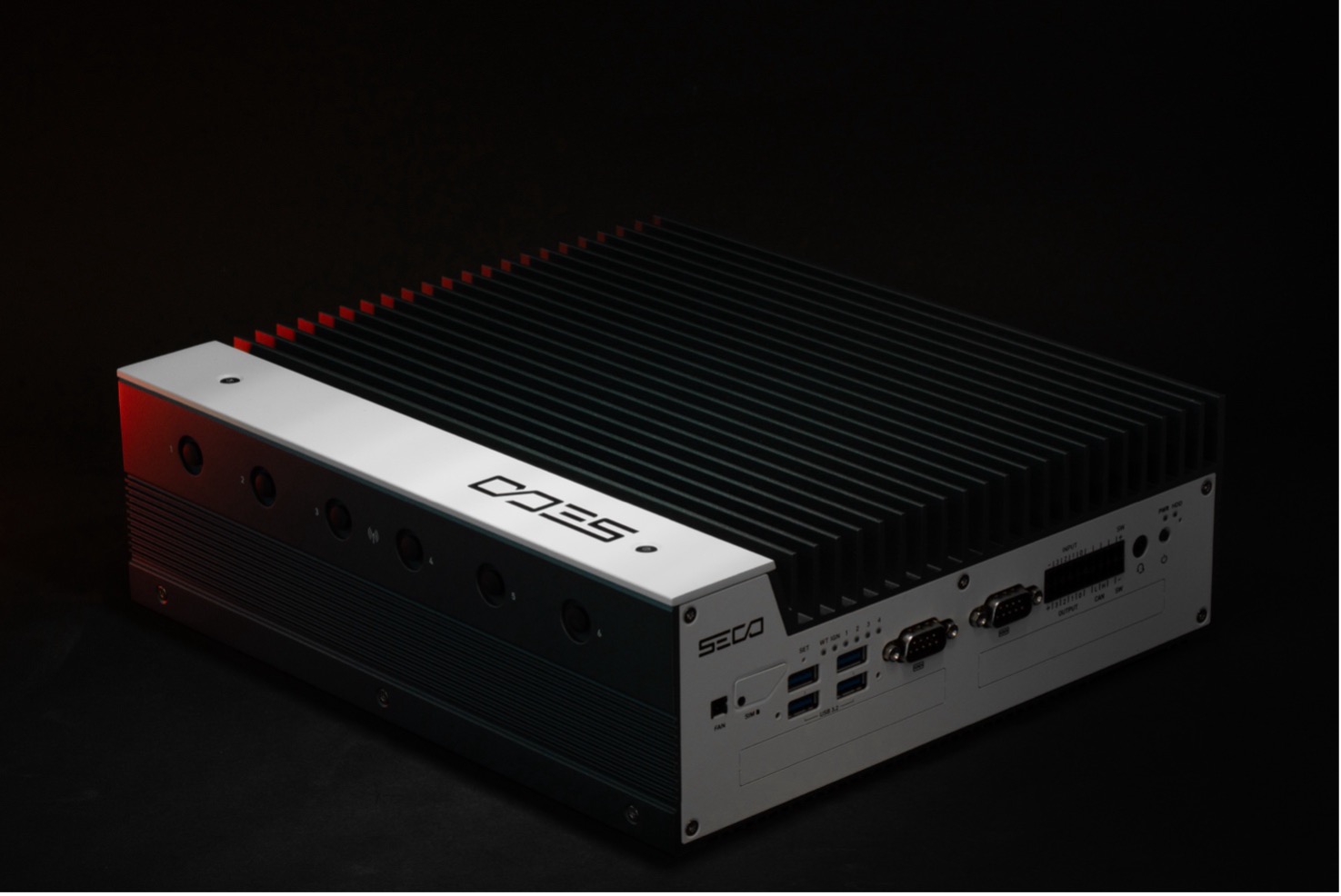

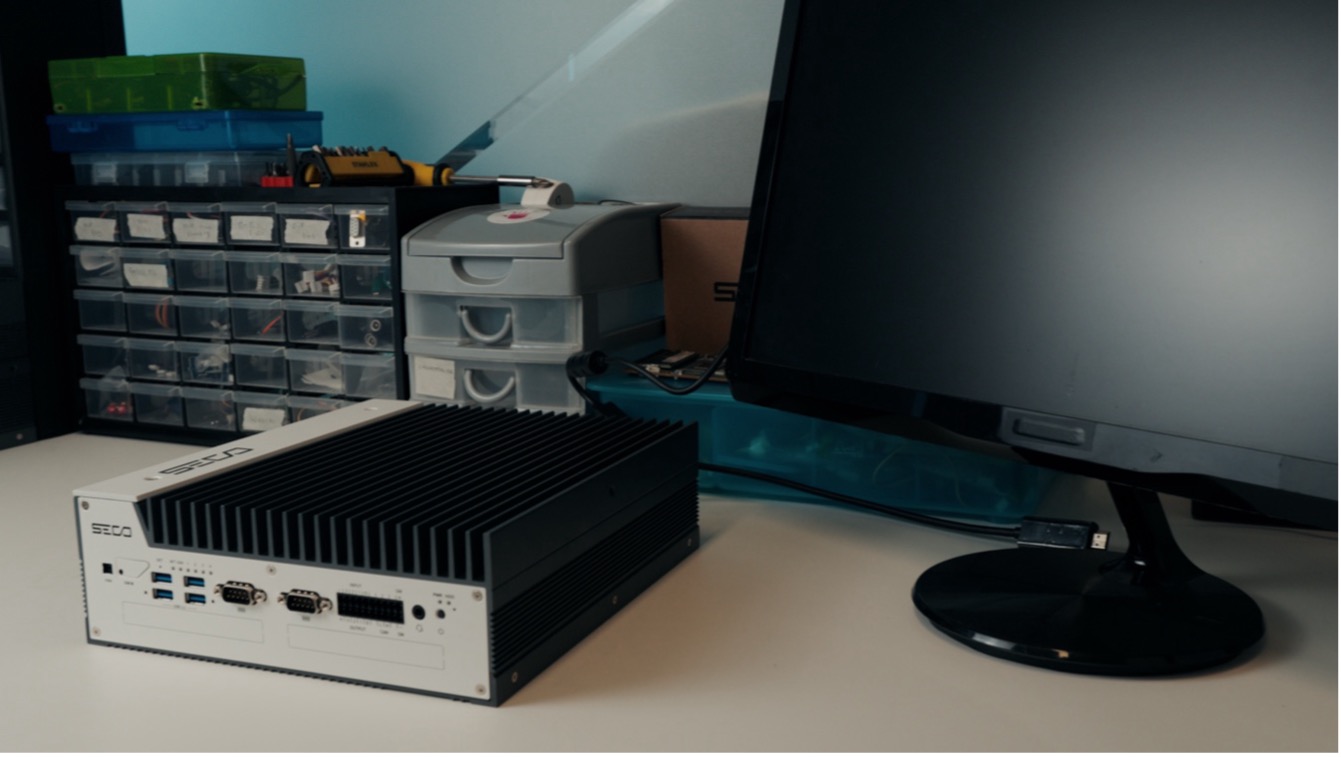

The Palladio 400 RPL is a rugged, fanless embedded computer built to deliver top performance in harsh industrial environments. Designed for 24/7 operation, it offers flexibility, modularity, and the computational power of Intel's 13th Gen Core processors, all packed into a compact form factor. Whether you're deploying it for smart manufacturing, edge AI, or industrial control systems, this guide will help ensure your first setup goes smoothly.
Before you begin
What’s in the Box?
Inside your package, you should find:
- The Palladio 400 RPL device
- A 5-pin power terminal block
- Optional DIN rail or wall mounting brackets (if ordered)
- Cables and accessories (this may vary based on the specific kit you ordered)
- Documentation: User manual, CE certificates, warranty information
- Any optional modules you ordered (e.g., LTE kits, serial port kits, cooling fan) will be included as separate components
Essential Peripherals (You'll Need These):
- Power Supply: A UL-certified power supply providing 12-36 VDC.
- Display: A monitor with a DisplayPort input. An HDMI-to-DisplayPort adapter can also be used.
- Input Devices: A USB keyboard and mouse.
- Operating System (OS): If your device is not preloaded with Clea OS, you'll need your chosen OS image on a bootable USB drive.
- Network Cable: For wired network access.
Safety First!
- Always power off all sources before performing physical installation or connecting/disconnecting peripherals.
- Always read the full safety instructions in the main user manual before installation.
- Ensure the device will operate within its specified environmental conditions:
- Temperature: -40°C to +70°C (for 35W CPUs), -40°C to +50°C (for 65W CPUs)
- Humidity: 0-90%, non-condensing
- Use only UL-certified power supplies.
- Avoid contact with liquids or corrosive substances.
- Maintain at least 5 cm (2 inches) of clear space around the device for airflow.
Hardware Overview & Connections
The Palladio 400 RPL is a compact, modular industrial PC powered by Intel® Core™ i3/i5/i7/i9 processors (up to 14 cores and 20 threads, depending on model). It supports up to 32 GB of DDR4 RAM, and leverages high-performance graphics thanks to the integrated Intel UHD Graphics 770, depending on CPU configuration.
Thanks to its fanless design and optimized heatsink, the system is perfect for use in environments with dust, vibrations, or strict reliability requirements.
It offers a rich set of I/O ports. Refer to the diagrams for port locations.
- 6x USB 3.2 Gen 2 ports (4 Type A front panel and 2 Type A back panel)
- 2x or 6x 2.5GbE LAN ports (with optional PoE)
- 2x DisplayPorts supporting up to 4K@60Hz
- Multiple internal expansion options (M.2, mPCIe, and full PCIe Gen 4 x16 or dual x8)
The Palladio 400 RPL supports internal expansion for:
- Up to 32 GB DDR4 RAM
- Storage:
- Up to 2x SATA 2.5" drives (hot-swappable optional)

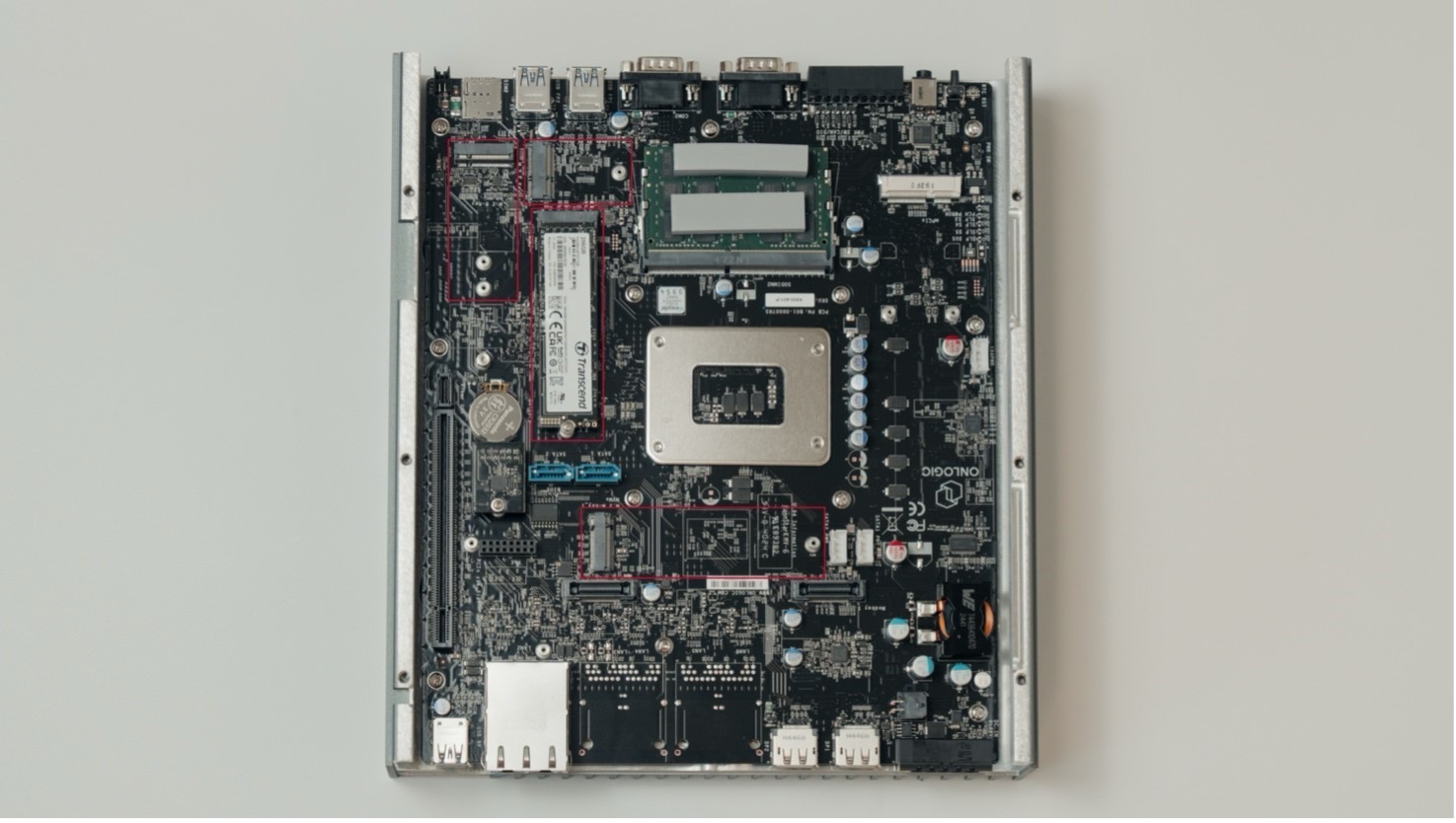

- Up to 3x M.2 2280 SSDs (PCIe Gen 4 and SATA support).
- M.2, mPCIe, and full PCIe Gen 4 x16 (or dual x8) slots for additional modules like Wi-Fi/Bluetooth or AI accelerators.
Refer to the main user manual for detailed instructions on accessing internal components and installing modules/drives.
Physical Installation
DIN Rail Mounting
- Power off all sources.
- Align the device with the DIN rail and snap it securely into place.
- Connect the power terminal and lock it by turning clockwise.
Wall Mounting
- Power off before starting.
- Use four M4x0.5mm flat head screws to mount the unit using the optional wall mounting brackets.
- Connect power and external devices.
Connecting Peripherals and Power

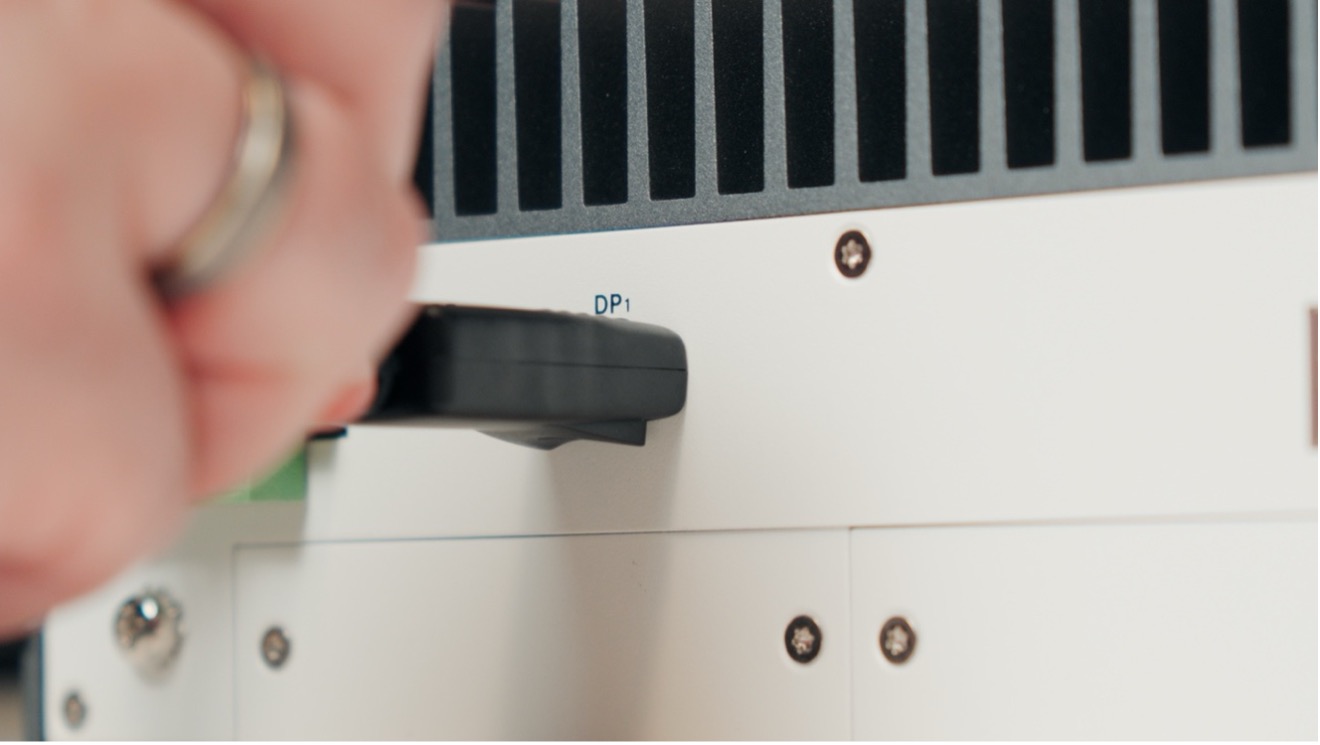

- Display: Connect your monitor to one of the DisplayPort (DP) outputs. You may use an HDMI-to-DP adapter.

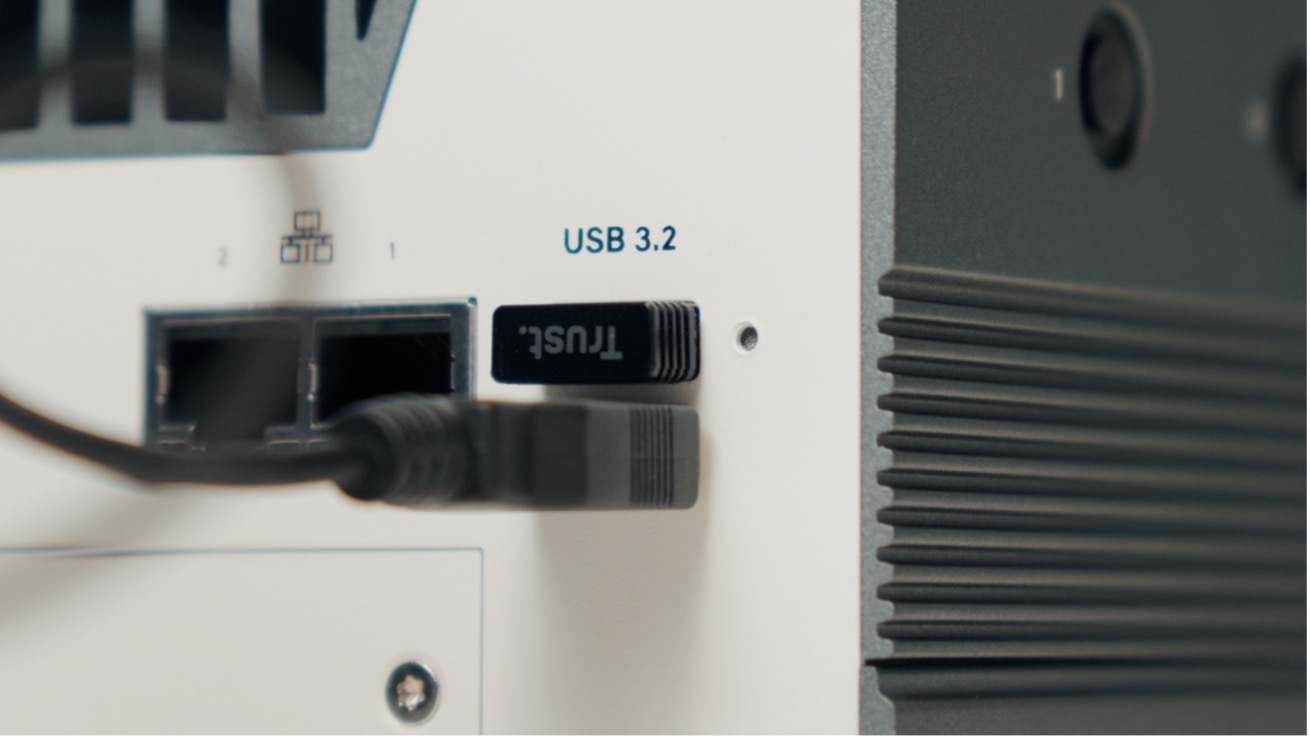

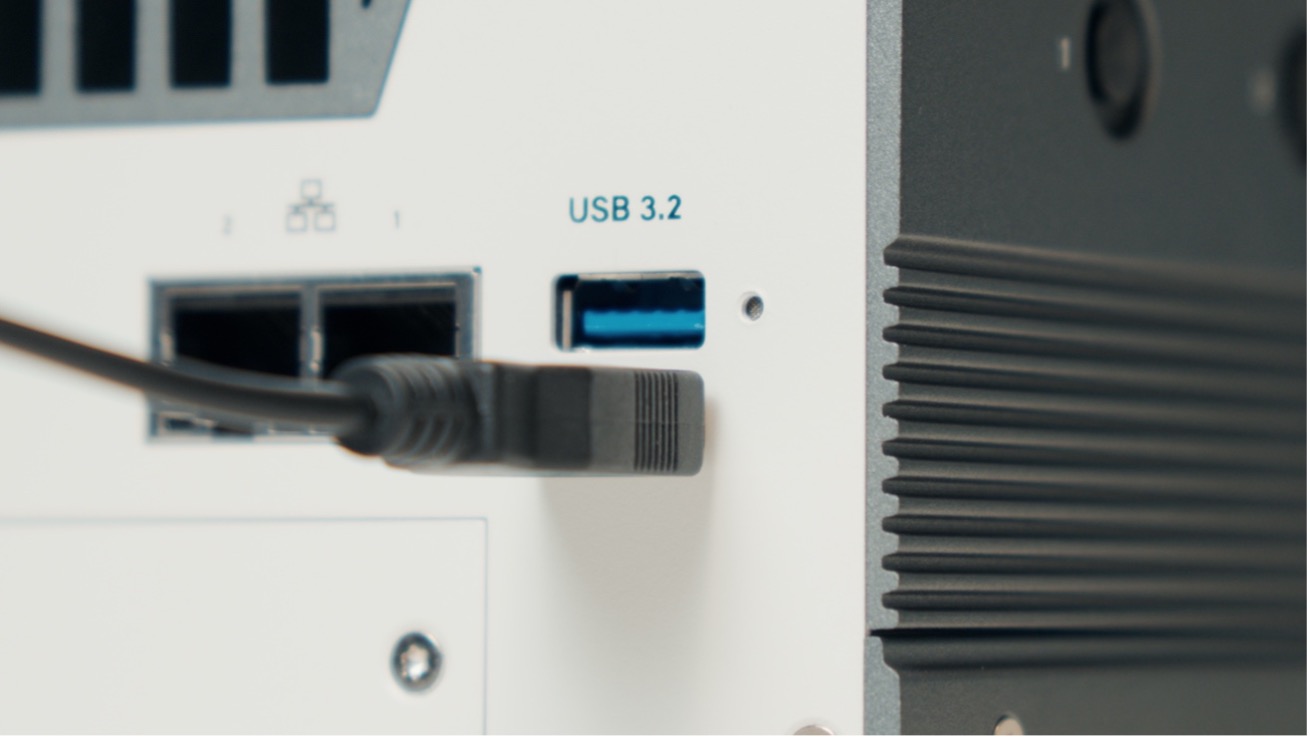

- Keyboard & Mouse: Connect your USB keyboard and mouse to any available USB 3.2 ports.

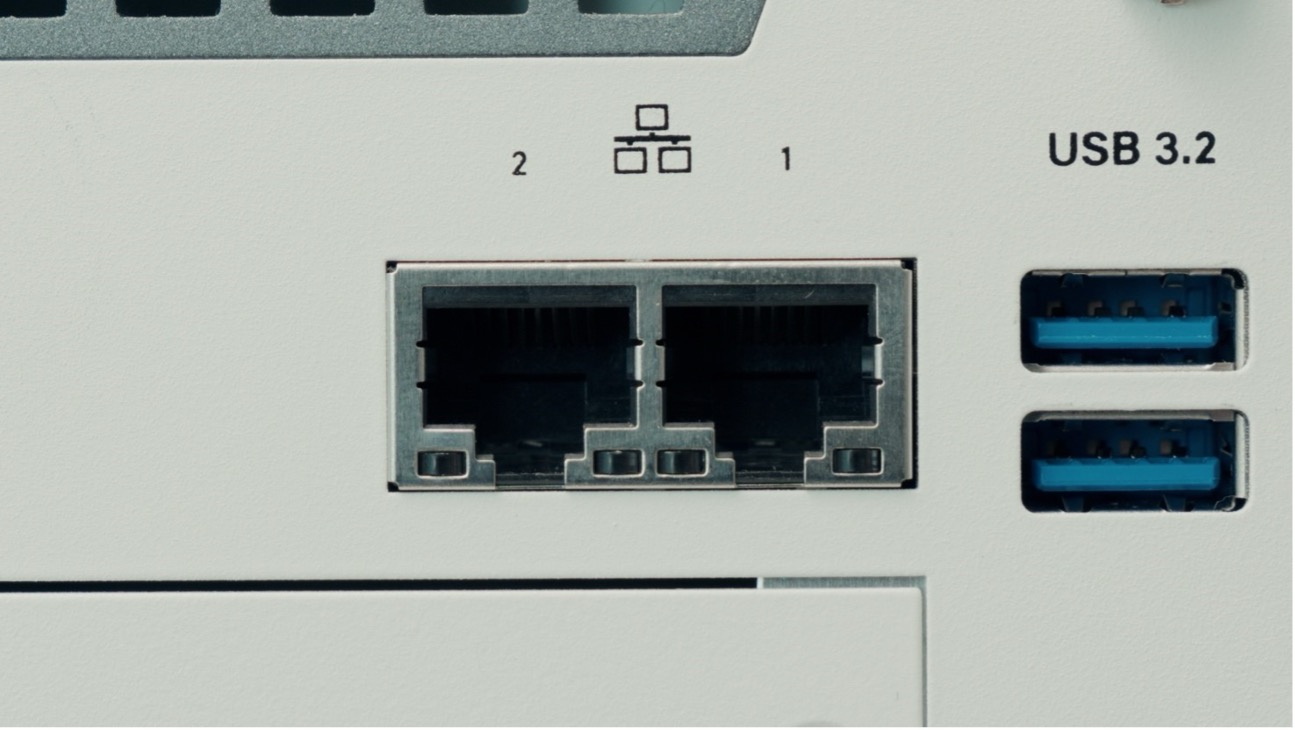

- Network: Connect an Ethernet cable to one of the 2.5GbE LAN ports for wired network access (PoE optional).

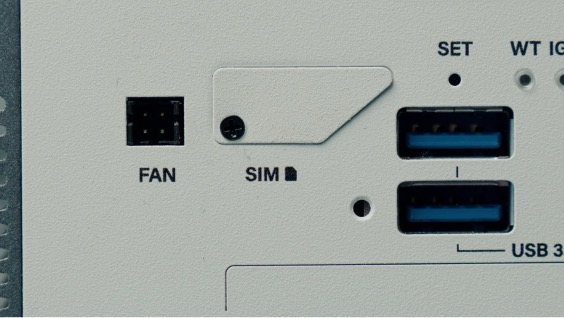

- SIM Card (if applicable): If you have an LTE module installed, insert your SIM card(s) into the appropriate slots.
- Power:
- Ensure the power supply is off.
- Wire your 12

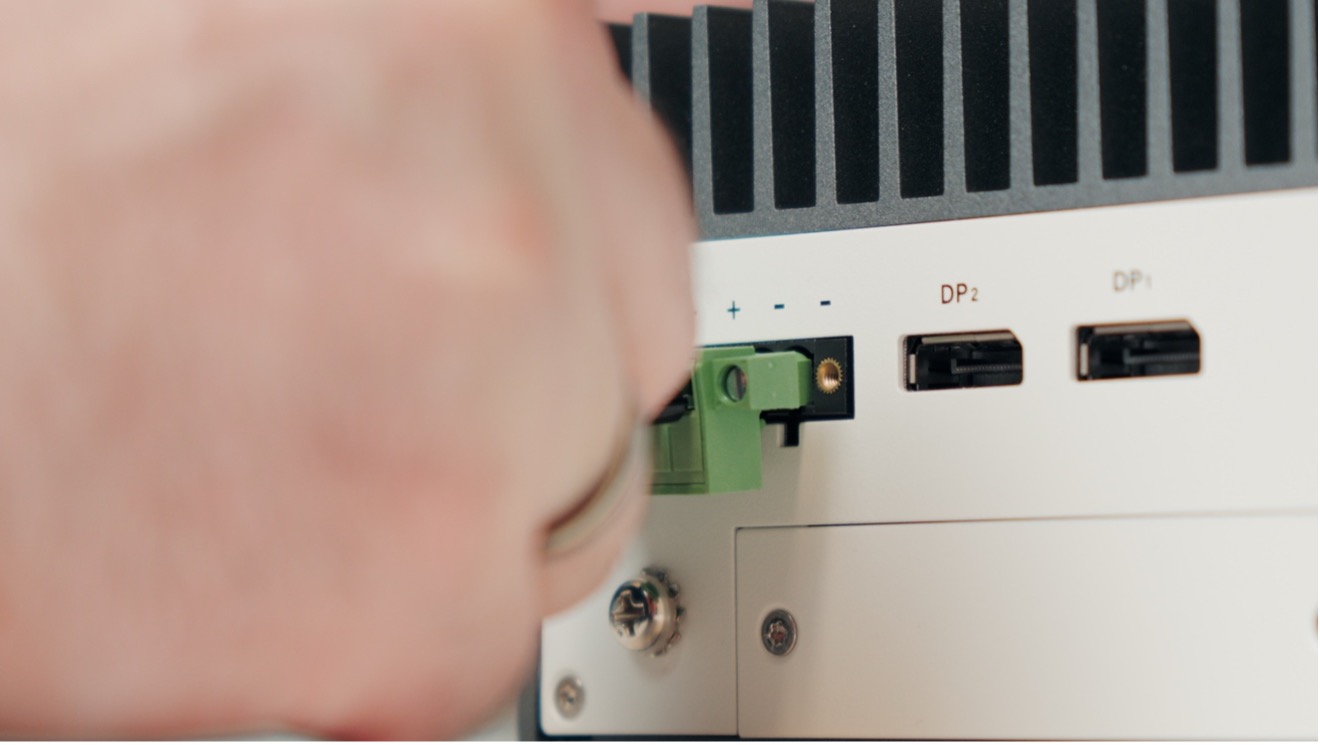

48 VDC power source to the 5-pin terminal block, observing correct polarity. Use a 2048 VDC power source when configured with PCIe expansion 70W or above. - Connect the terminal block to the Palladio 400 RPL's power input connector. For DIN rail installations, ensure it is locked by turning clockwise.
First Boot & Software Environment
The Palladio 400 RPL typically comes preloaded with Clea OS, SECO’s secure Yocto Linux-based operating system optimized for containerized workloads (via Docker) and ready to connect to the Clea IoT Suite. Windows 10/11 IoT is also supported.
Powering On: Once all peripherals are connected and the power supply is securely attached, press the power button to turn on the Palladio 400 RPL.
If you need to install a different OS, access BIOS/UEFI by pressing [key] at startup, and ensure your bootable USB drive is set as the primary boot device.
If you are using Clea OS, it supports connecting to Clea out-of-the-box. To connect to Clea, please follow this guide.
Maintenance & Support
- Power off the device before cleaning; use only a dry cloth.
- Monitor system health via Clea tools (if using Clea OS) or other internal sensors/OS utilities.
- Use only certified spare parts if replacements are needed.
- Dispose of the unit according to WEEE directives.
Optional Accessories
Enhance your Palladio 400 RPL with:
- 4G/LTE EU or US kits + antennas
- Wi-Fi/Bluetooth expansion modules
- Axelera Metis AI accelerator
- Industrial power adapters (up to 330W)
- Wall/DIN rail mounting kits
- Additional USB or serial port kits
Need Help?
Contact SECO support or visit www.seco.com for detailed documentation, drivers, and software tools.
